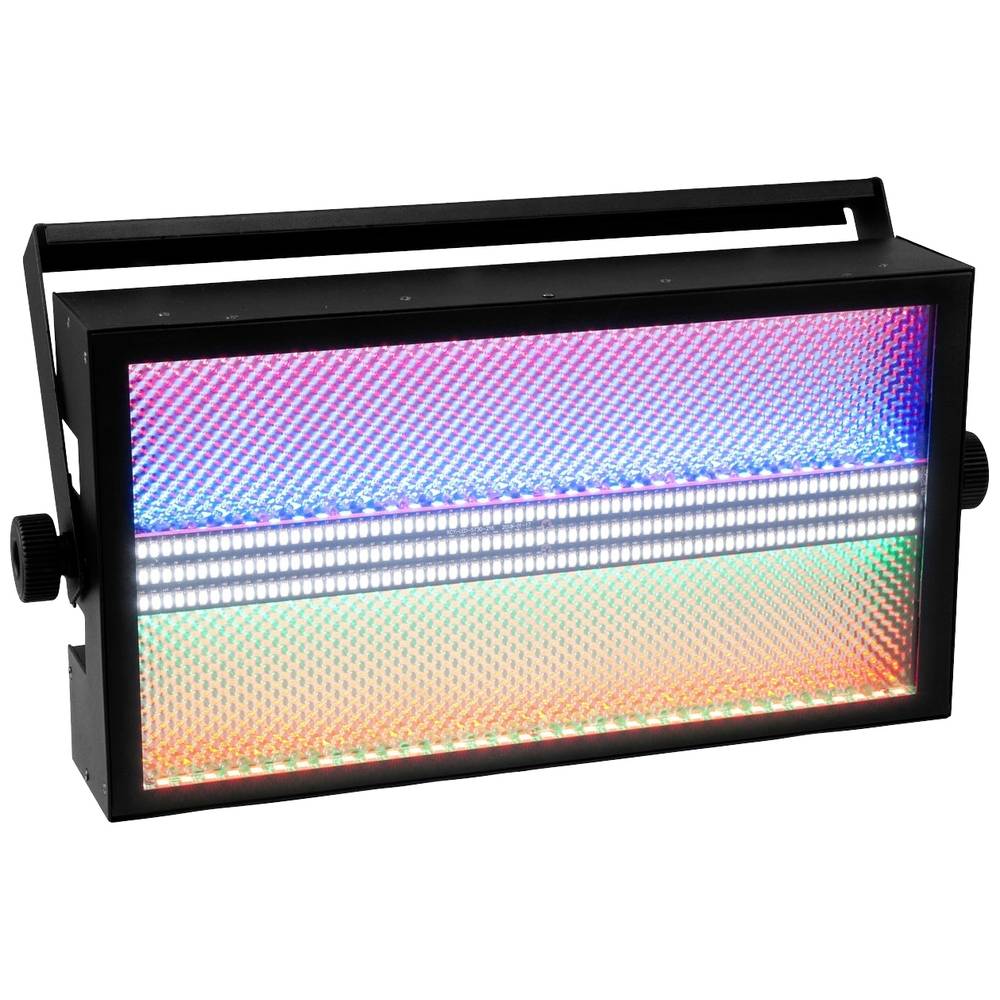

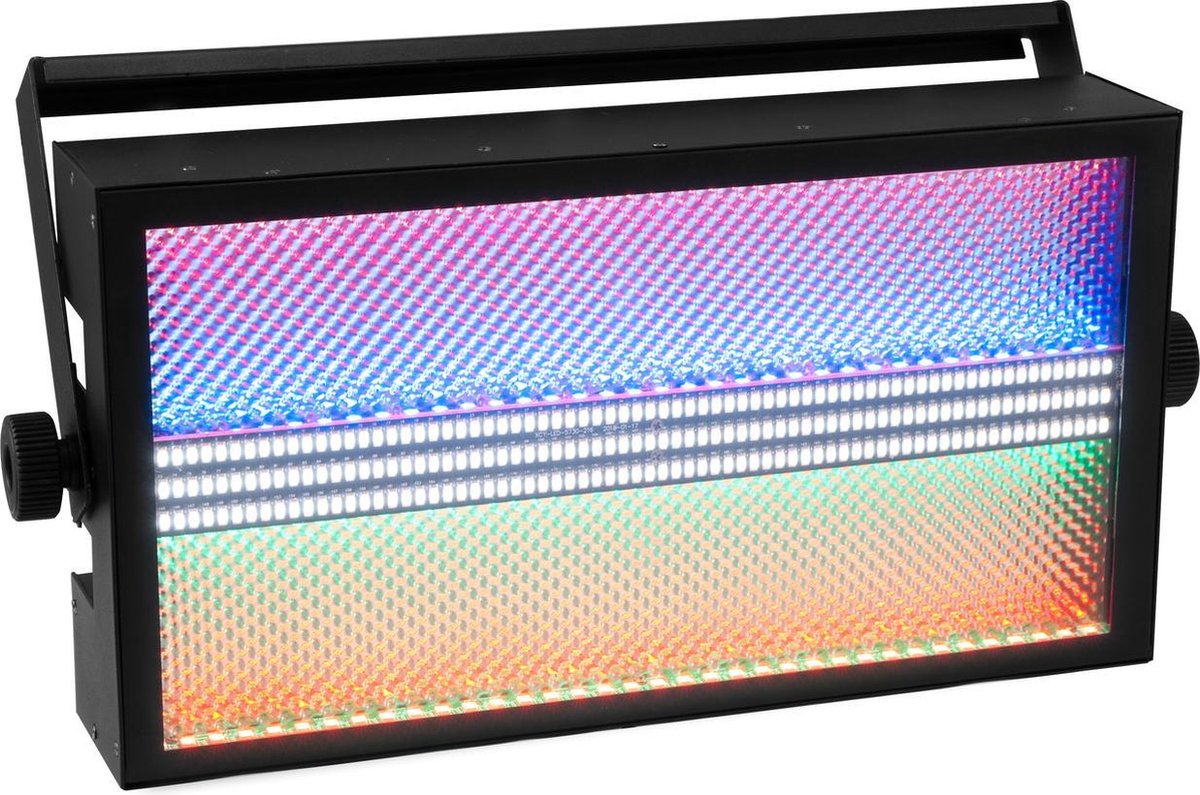

The Super Strobe ABL combines three functions in one fixture: It is equipped with 216 cold white SMD LEDs for both dynamic strobe effects and slower blinder effects. Furthermore, the reflecting surface of the stroboscope is illuminated with an extra 144 RGB LEDs creating colorful, atmospheric light effects.
Depending on the selected DMX mode, the color LEDs can be split in up to 48 individual control segments which can be used to create amazing color effects within the fixture.

The Super Strobe ABL has a very wide beam angle which makes both dynamic and calm light effects a great visual experience, even from a lateral view.

The fixture has 3-pin DMX connectors as well as a P-Con input and output to connect it to the mains. For a structured and versatile use, you can choose from 4 different DMX modes with 7, 13, 22 and 148 DMX channels respectively.

3in1 LED effect light with RGB color mixing

3 effects in one device: strobe, blinder and ambient light
216 cold white LEDs (SMD 5730) for fast, dynamic strobe effects
144 additional RGB LEDs (SMD 5050) create a pleasant mood light
Individual control of RGB and cold white LEDs in DMX mode
RGB LEDs controllable in 1 or 48 segments depending on the DMX mode
Auto, music, master/slave and DMX mode
17 built-in auto and music chase programs
Flash rate 20 Hz
Stepless RGB color mixing
Dimmer
Addressing and setting via control panel with 4-digit LED display
Sound-control via built-in microphone with adjustable microphone sensitivity
DMX512 control possible via any commercial DMX controller
7, 13, 22 or 148 DMX channels selectable
Flat metal housing with integrated wall holders
Swivel mounting bracket
Power connection via P-Con jack and included power cable with safety plug
Feed-through output allows to power up to 8 devices
Effect: Strobe effect
Projection: flickerfree

Power supply:
100-240 V AC, 50/60 Hz

Power consumption:
130 W

Number of DMX channels:
7/13/22/148

DMX512 connection:
3-pin XLR

Sound-control:
via built in microphone

LED type:
144 x SMD 5050, RGB


216 x SMD 5730, cold white

Number of LEDs:
360

Beam angle:
120°

Dimensions (LxWxH):
80 x 455 x 255 mm

Weight:
3.5 kg

DMX channels:
7

Width:
45,5 cm

DMX channels:
13; 22; 148

Depth:
8 cm

Weight:
3,94 kg

Height:
25,5 cm

Ecodesign regulation:
Yes

Special product:
Not designed for household room illumination

Purpose:
Show effect lighting
