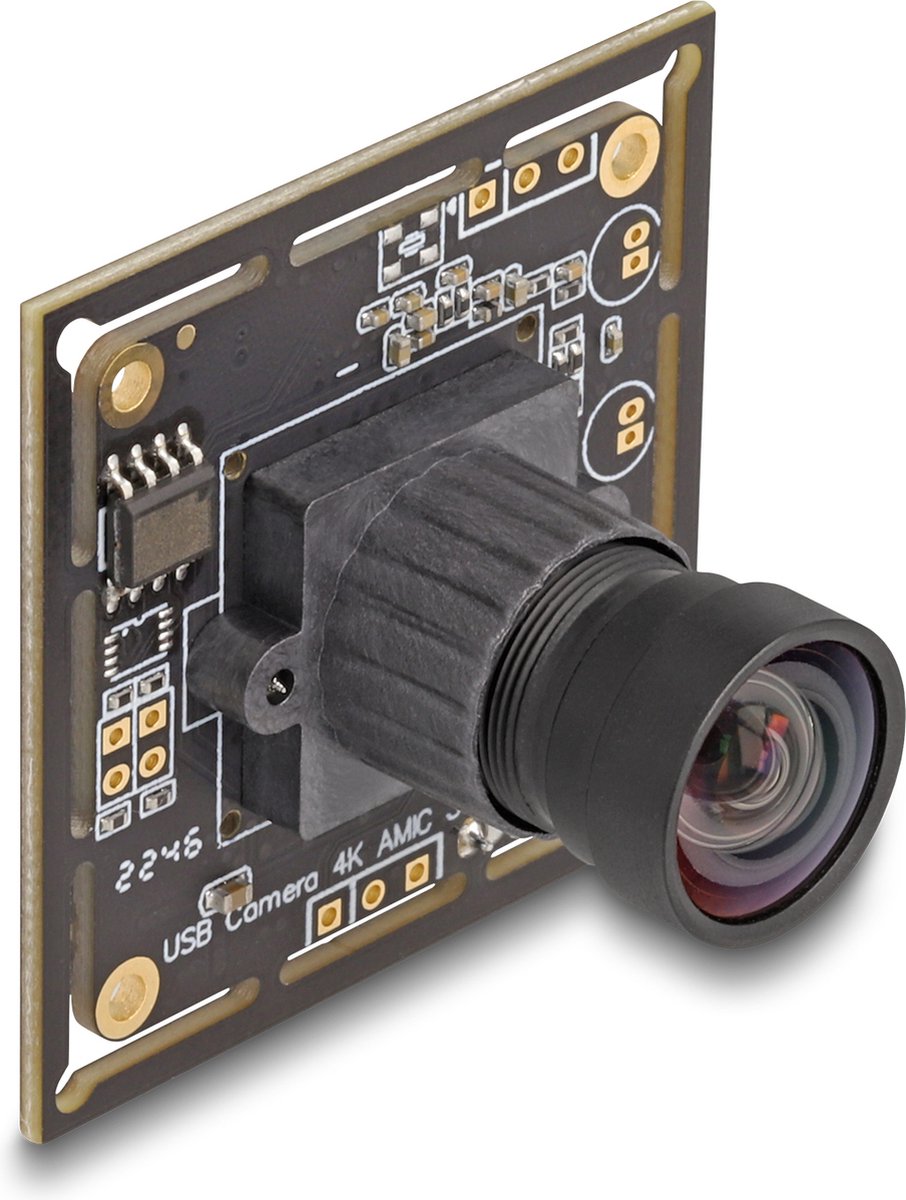

This USB 2.0 camera module by Delock offers in a compact construction a high resolution and low power consumption. It is ideally suited for installation in industrial components like IPCs, embedded systems, sensors and in device manufacture. The use of a photosensitive sensor with back side illumination (BSI) expands the scope of this module.

HDR - High Dynamic Range
Allows to increase the overall dynamic range to ensure more detailed images in scenes with bright and dark areas.

• Connector: 1 x 4 pin USB 2.0 pin header female SMT, pitch 1.5 mm
• Resolution: 8.3 megapixel
• Sensor: IMX415 Sony® Starvis™
• With optical IR filter
• Maximum resolution: UHD @ 30 fps (3840 x 2160)
• Current consumption: ca. 100 mA
• Operating voltage: 5 V DC
• Operating temperature: -10 °C ~ 70 °C
• Operating humidity: ≤ 80 %
• Sensor size: 1/2.8″
• Sensitivity: 1.2 V / lx s
• Signal-to-noise ratio (SNR): ca. 41 dB
• Dynamic range: 72 dB
• Fix focus: 0.3 m - infinite
• Aperture: F/2.7
• Lens thread: M12
• Frame rates: all resolutions MJPG 30 fps
• Dimensions (LxWxH): ca. 38.0 x 38.0 x 22.3 mm

• Device with UVC support
• Windows 10/10-64/11
• DirectX 9.0c or above
• Linux Kernel 2.6.15 and above with Video4Linux

Package content

• Camera Module
